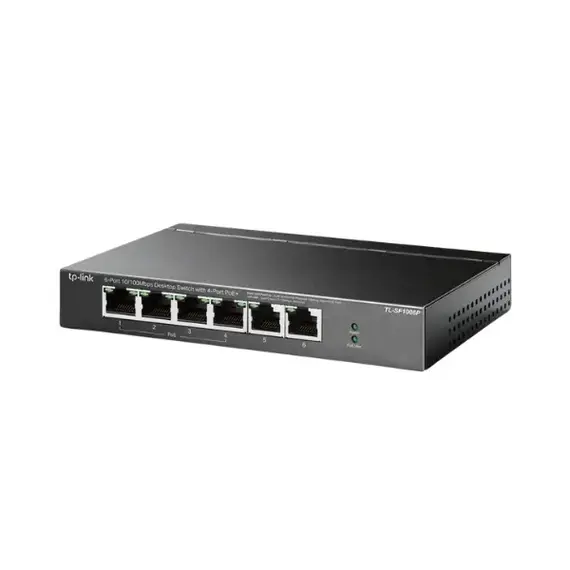

The TP-Link TL-SF1006P is a 6-port Fast Ethernet (10/100 Mbps) unmanaged desktop switch with 4 PoE+ ports. It supports IEEE 802.3af/at standards, delivering both data and power over Ethernet cables. The switch offers a total PoE power budget of 67W and can extend PoE transmission distance up to 250 meters, ideal for IP cameras and other PoE devices. It features plug-and-play setup, intelligent power management, one-click priority mode, and a durable metal casing for reliable operation in small network environments.
The TP-Link TL-SF1006P is a 6-port unmanaged desktop switch supporting Fast Ethernet (10/100 Mbps) speeds, with 4 PoE+ ports that deliver both data and power over Ethernet cables. Compliant with IEEE 802.3af/at standards, it provides a total PoE power budget of 67W, enabling up to 30W per PoE port. Designed for plug-and-play simplicity, it includes extend mode for transmission up to 250 meters, priority mode for sensitive applications, intelligent power management, and a fanless metal casing, making it suitable for small offices, surveillance setups, and powering devices like IP cameras, access points, and IP phones.
Ports: 6 × 10/100 Mbps RJ45 ports (4 support PoE+)
PoE: IEEE 802.3af/at compliant, up to 30W per port, 67W total budget
Switching Capacity: 1.2 Gbps
MAC Address Table: 2K entries
Jumbo Frame: Up to 2 KB
Transmission Distance: Standard 100m; Extend mode up to 250m at 10 Mbps
Auto Features: Auto-negotiation, Auto MDI/MDIX
Power Supply: External 54V DC adapter
Dimensions: 158 × 101 × 25 mm
Cooling: Fanless metal case
Software and Features
Plug-and-play, no configuration needed
Extend mode for long-distance PoE
Priority mode for ports 1–2 to ensure video traffic quality
Intelligent power management with overload protection
Supports IEEE 802.3x flow control (full duplex) and backpressure (half duplex)
Environmental & Compliance
Operating temperature: 0–40 °C
Storage temperature: -40–70 °C
Humidity: 10–90% RH (operating)
Certifications: FCC, CE, RoHS
Package & Warranty
Includes switch, power adapter, installation guide
2-year limited warranty (region-dependent) ### Full Hardware Specifications
Interface and Ports:
6 × 10/100 Mbps RJ45 ports
Ports 1–4 support IEEE 802.3af/at PoE+
Auto Negotiation for automatic speed and duplex detection
Auto MDI/MDIX for crossover cable-free connections
Network Media Support:
10BASE-T: UTP category 3, 4, 5 cable (max 100m); EIA/TIA-568 100Ω STP (max 100m)
100BASE-TX: UTP category 5, 5e cable (max 100m); EIA/TIA-568 100Ω STP (max 100m)
PoE Details:
Standard: IEEE 802.3af/at compliant
PoE Ports: 1–4
Power per Port: Up to 30 W
Total PoE Power Budget: 67 W (lab-tested; actual may vary due to environmental factors and device limitations)
Compatible PDs: IP cameras, access points, IP phones, and other 802.3af/at devices
Performance and Capacity:
Switching Capacity: 1.2 Gbps
Packet Forwarding Rate: 892.8 Kpps
MAC Address Table: 2K entries with auto-learning and auto-aging
Jumbo Frame: Up to 2 KB
Transmission Method: Store-and-forward
Modes and Extensions:
Extend Mode: One-click activation for ports 1–4; extends data and power up to 250 m at 10 Mbps (speed downgrades from 100 Mbps; actual distance varies by cable quality, type, and PD power draw)
Priority Mode: One-click for ports 1–2 to prioritize sensitive traffic like video monitoring
Standard Transmission: Up to 100 m at 100 Mbps
Power and Efficiency:
External Power Supply: 54 V DC / 1.3 A adapter
Max Power Consumption: 1.9 W (no PD connected); 74 W (with 67 W PD connected)
Max Heat Dissipation: 6.5 BTU/h (no PD); 252.3 BTU/h (with PD)
Intelligent Power Management: Auto-detects PDs, provides required power, cuts lower-priority ports during overload to stay under 67 W, and protects against damage
Physical Design:
Dimensions (W × D × H): 158 × 101 × 25 mm (6.2 × 4.0 × 1.0 in)
Fan Quantity: Fanless for silent operation
Casing: High-quality metal for durability and heat dissipation; passed reliability tests
Mounting: Compact desktop or wall-mountable
Security: Physical security lock slot
Software and Advanced Features
Management and Setup:
Plug-and-Play: No configuration or software required
Extend Mode Switch: For ports 1–4 to enable long-range transmission
Priority Mode Switch: For ports 1–2 to guarantee quality for applications like surveillance
Flow Control and Compatibility:
IEEE 802.3x flow control for full-duplex mode
Backpressure for half-duplex mode
Full compatibility with IEEE 802.3af/at PDs
Environmental Specifications
Temperature:
Operating: 0–40 °C (32–104 °F)
Storage: -40–70 °C (-40–158 °F)
Humidity:
Operating: 10–90% RH non-condensing
Storage: 5–90% RH non-condensing
