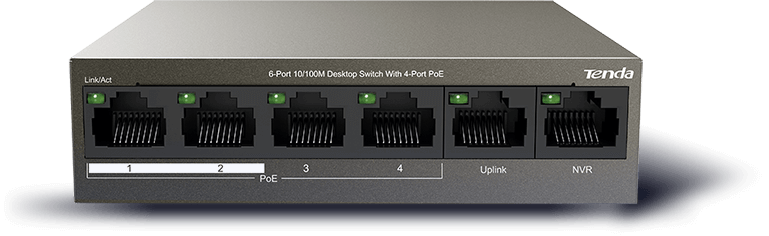

TEF1106P-4-63W 6-Port 10/100M Desktop Switch

Model: Tenda TEF1106P-4-63W

Type: Unmanaged PoE Switch

Ports:

4 x 10/100 Mbps RJ45 PoE ports

2 x 10/100 Mbps RJ45 non-PoE ports

Performance Specifications

Switching Capacity: 1.2 Gbps

Forwarding Rate: 0.88 Mpps (for 100 Mbps)

MAC Address Table: 1,000 entries

Jumbo Frame Support: Up to 1,500 bytes

Power Specifications

Power Supply:

AC 100-240V, 50/60Hz

Total PoE Budget: 63W

Maximum Power per PoE Port: 15.4W (IEEE 802.3af)

Physical Specifications

Form Factor:

Desktop

Dimensions:

200 mm x 100 mm x 30 mm (7.87 in x 3.94 in x 1.18 in)

Weight:

Approximately 0.5 kg (1.1 lbs)

Cooling:

Fanless design for silent operation

Environmental Specifications

Operating Temperature:

0°C to 40°C (32°F to 104°F)

Storage Temperature:

-40°C to 70°C (-40°F to 158°F)

Operating Humidity:

10% to 90% non-condensing

Storage Humidity:

5% to 90% non-condensing

Additional Features

Lightning Protection:

6KV port lightning protection

Traffic Optimization:

Supports auto-negotiation and auto MDI/MDIX

Plug & Play:

No configuration required

PoE Features:

Supports IEEE 802.3af PoE standard

Safety and Emissions

Safety Certifications:

CE, FCC, RoHS

Emissions Certifications:

FCC Class A, CE Class A

Warranty and Support

Warranty:

Limited lifetime warranty (check with the retailer for specifics)

Technical Support:

Available through Tenda customer service
