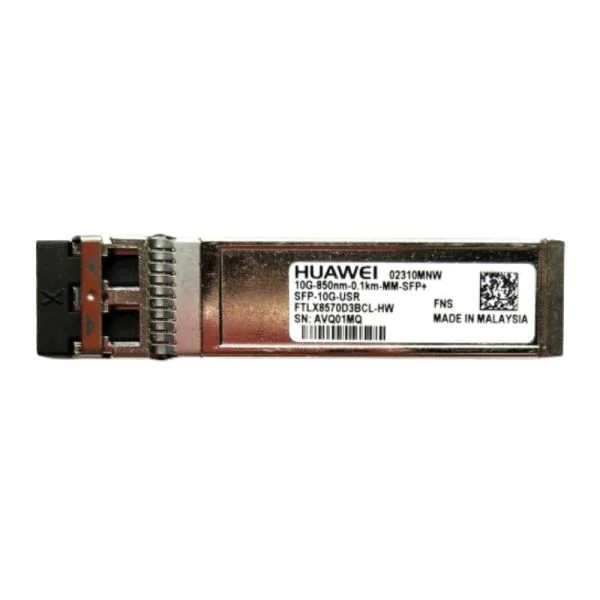

SFP-10G-USR Huawei Transceiver

Data Rate: 10 Gbps

Wavelength: 850 nm

Transmission Distance: Up to 300 meters over multimode fiber (OM3)

Connector Type: LC duplex

Form Factor: SFP+

Operating Temperature: 0°C to 70°C

Transmitter Power: -7.3 to -1.0 dBm

Receiver Sensitivity: -12.5 dBm

Standard Compliance: 10GBase-USR

Compatibility: Supported in V100R002C00 and later versions of Huawei devices

Digital Optical Monitoring (DOM): Yes

This module is suitable for high-speed networking applications, ensuring efficient data transfer in data centers and enterprise networks.

Optical Fiber Type: Multimode Fiber (MMF)

Maximum Distance:

300 meters over OM3 multimode fiber

400 meters over OM4 multimode fiber

Power Consumption:

Low power consumption for energy efficiency

Transmitter Optical Characteristics:

Transmit Power: -7.3 to -1.0 dBm

Wavelength: 850 nm

Receiver Optical Characteristics:

Receiver Sensitivity: -12.5 dBm

Environmental Specifications:

Operating Temperature Range: 0°C to 70°C (32°F to 158°F)

Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)

Applications:

Suitable for data centers, enterprise networks, and high-speed LAN environments
