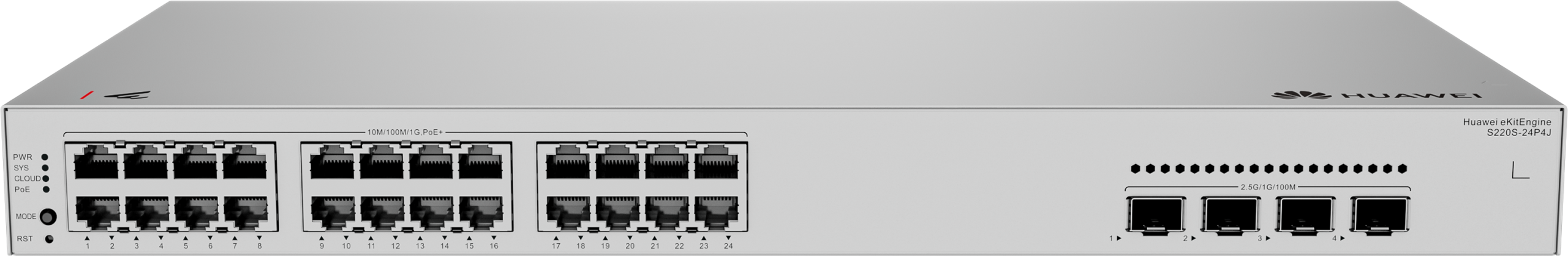

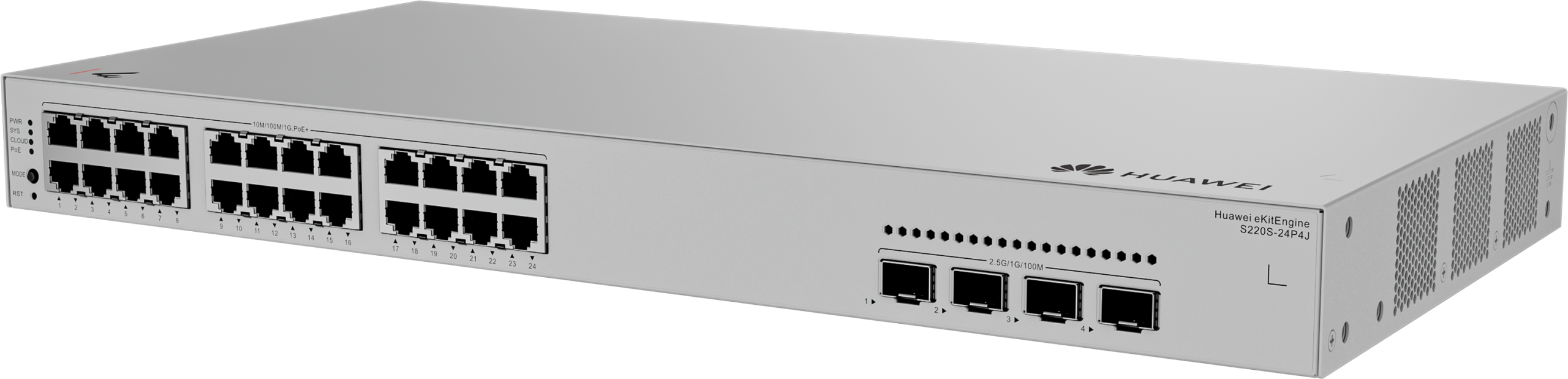

Huawei eKITEngine S220S-24P4J Managed Switch PoE 24 Port

The Huawei eKITEngine S220S-24P4J is a managed PoE switch designed for efficient networking in various environments. It features 24 Gigabit Ethernet ports with Power over Ethernet (PoE) capabilities and 4 10GE SFP+ uplink ports, making it suitable for applications such as IP surveillance, wireless access points, and VoIP phones.

The S220S-24P4J is ideal for small to medium-sized networks requiring reliable power delivery and data connectivity, such as offices, schools, and retail locations.

Key Features:

• 24× Gigabit PoE+ RJ45 Ports — Each port supports IEEE 802.3af/at PoE+ to deliver both data and power to connected devices.
• 4× 2.5 GE SFP Uplinks — Supports 100 Mbps/1 Gbps/2.5 Gbps SFP modules for uplink flexibility and higher throughput.
• 400 W PoE Budget — Ample power for multiple high‑power PoE devices like APs and cameras.
• Smart Layer‑2 Management — Supports VLANs, QoS, link aggregation, ACLs, IGMP snooping, DHCP snooping, and other advanced switch features (managed via web UI, eKit apps, or cloud).
• Built‑in AC Power Supply — AC 100–240 V input with integrated PSU simplifies installation.
• Intelligent Cooling System — Dual fans with smart speed control for reliable operation under load.
• Metal 1U Rackmount Chassis — Durable design for rack, desktop, or wall mount.
• Flexible Mounting Options — 1U rack, desk, or wall‑mountable to suit different environments.

Technical Highlights:

• Model: S220S‑24P4J
• Downlink Ports: 24× 10/100/1000 BASE‑T PoE+
• Uplink Ports: 4× 2.5 GE SFP (supports 100 M/1 G/2.5 G)
• Total PoE Budget: ~400 W
• Switching Capacity: ~68 Gbps
• Packet Forwarding Rate: ~51 Mpps
• MAC Address Table: ~16,000 entries
• Power Input: AC 100–240 V, 50/60 Hz
• Cooling: Dual built‑in fans with intelligent adjustment
• Chassis: Metal, 1U rackmountable
• Dimensions (H × W × D): ~43.6 × 442 × 220 mm
• Weight: ~2.8 kg (without packaging)
• Operating Temperature: ~–5 °C to +45 °C
• Humidity: 5 %–95 % non‑condensing
• Surge Protection: ±6 kV differential/common‑mode on power/services

Applications:

• Enterprise Access Networks — Connect PCs, VoIP phones, wireless APs, and PoE devices with flexible uplinks.
• SMB Office LANs — Provides dependable gigabit access and device power for small and medium businesses.
• IP Surveillance Deployments — Powers and connects multiple PoE cameras without separate power injectors.
• High‑Speed Uplink Segments — 2.5GE uplinks boost connectivity to servers or aggregation switches.
• Managed VLAN & Traffic Control — Smart Layer‑2 features enhance network segmentation, QoS, and security.
• Flexible Installation — Fits rack, desktop, or wall‑mounted setups in wiring closets or offices
