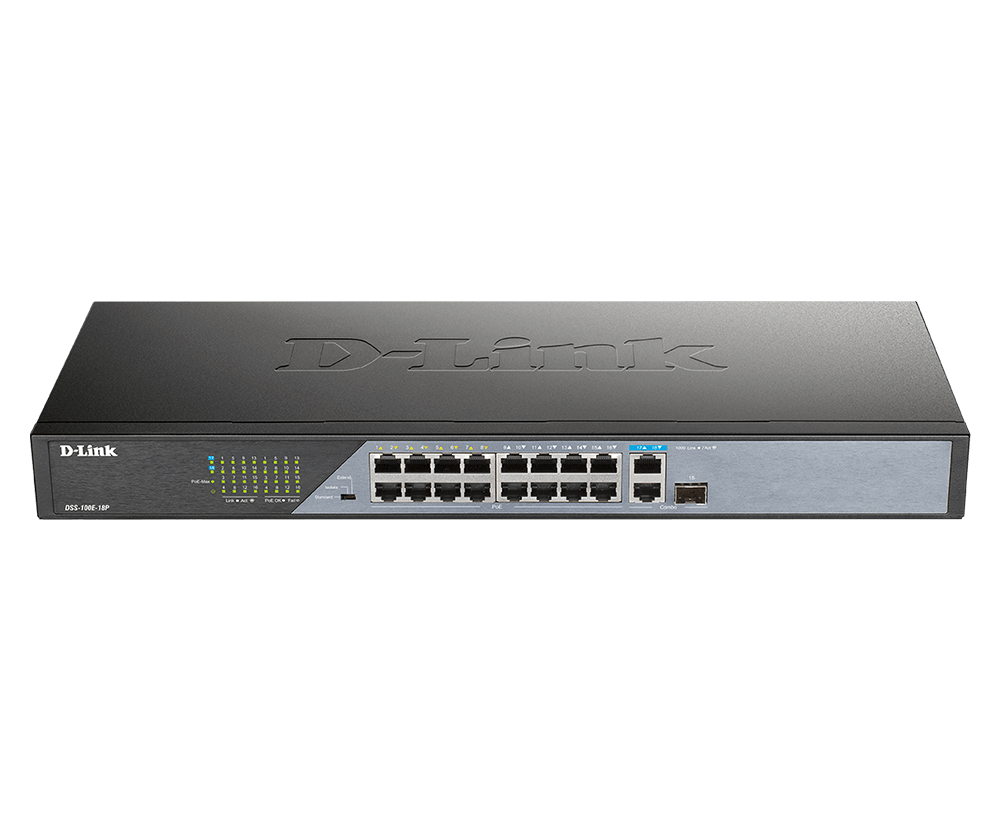

DSS-100E-18P 18-Port 10/100BASE-TX PoE Unmanaged

DSS-100E-18P 18-Port 10/100BASE-TX PoE Unmanaged

The D-Link DSS-100E-18P is an unmanaged PoE (Power over Ethernet) switch ideal for small offices, homes, or basic surveillance networks. It offers 18 10/100 Mbps Ethernet ports, with 16 supporting PoE for powering compatible devices like IP cameras or VoIP phones. This plug-and-play device requires no setup and features a fanless design for quiet operation. Below are the detailed specifications based on official D-Link documentation.

Model : DSS-100E-18P

16 x 10/100BASE-TX RJ-45 PoE ports

2 x 10/100BASE-TX RJ-45 uplink ports

Switching Capacity: 3.6 Gbps

Forwarding Rate: 2.67 Mpps

PoE Standard: IEEE 802.3af

Power Budget: 230W

Management Type: Unmanaged

5,500 EGP 9,000 EGP

The D-Link DSS-100E-18P is an unmanaged PoE (Power over Ethernet) switch ideal for small offices, homes, or basic surveillance networks. It offers 18 10/100 Mbps Ethernet ports, with 16 supporting PoE for powering compatible devices like IP cameras or VoIP phones. This plug-and-play device requires no setup and features a fanless design for quiet operation. Below are the detailed specifications based on official D-Link documentation.

SKU: DSS-100E-18P Category:
  1. DSS-100E Series
    • Supports power delivery to devices up to 250m away
    • 4, 8, 16 or 24 x 10/100 Mbps PoE Ethernet ports
    • Equipped with 6kV surge protection to prevent
    damage from lightning and power surges
    • With plug & play, your network is ready to go
    immediately
    • High power budget to support your surveillance
    newtork devices
    • PoE management prevents power overlead to protect
    powered devices (PD) from damage
    • Isolation Mode segregates source of attack to
    preserve network performance
    • Priority transmission of key data flow without loss
    PoE Unmanaged
    Surveillance Switches
    Surge Protection
    Supports up to 6 kV surge
    protection to defend your switch
    PoE Capable
    Up to 30W PoE output
    per port
    Gigabit Uplink
    1000BASE-T port options for
    fast uplinks
    Long Range
    Extended Range
    up to 250 M
    DIP Switch Convenience
    Isolation Mode & TrafficPriority Control can be easily
    configured via DIP switch
    The DSS-100E series is D-Link’s premier Power over Ethernet (PoE)
    surveillance switch series. They are the safest, most reliable and allround best solutions for surveillance deployments.
    DSS-100E Series  | Unmanaged Surveillance Switch
    Technical Specifications / DSS-100E Series
    Model DSS-100E-6P DSS-100E-9P DSS-100E-18P DSS-100E-26P
    Product Image
    General
    Hardware Version B1
    Size 11” standard rack width, 1U height 19” standard rack width, 1U height
    Interfaces 4 x 10/100Base-T
    PoE ports
    8 x 10/100Base-T PoE
    ports
    1 x 1000Base-T port
    16 x 10/100BASE-T PoE
    ports
    1 x 1000BASE-T ports
    1 x 100/1000BASE-T/
    SFP combo port
    24 x 10/100BASE-T
    PoE ports
    1 x 1000BASE-T ports
    1 x 100/1000BASE-T/
    SFP combo port
    Standards IEEE 802.3 100BASE-T Ethernet
    IEEE 802.3u 100BASE-TX Fast Ethernet
    IEEE802.3ab
    IEEE 802.3z
    IEEE 802.3x Flow Control
    Media Interface Exchange Auto or configurable MDI/MDIX
    LED Per unit: Power
    Per port: Activity / Link and Speed
    Per PoE port: Power fail, Power OK
    Functionality
    Switching Capacity 1.2 Gbps 3.6 Gbps 7.2 Gbps 8.8 Gbps
    Forwarding Rate 0.89 Mpps 2.69 Mpps 5.36 Mpps 6.55 Mpps
    Packet Buffer 0.45 Kbits 1.0 Mbits 2.75Mbits 4.0 Mbits
    Transmission Method Store-and-Forward
    MAC Address Table Size 1K 2K 4K 16K
    Static MAC Addresses Up to 512 static MAC entries
    Maximum Forwarding Rate 95.24 Mpps 104.16 Mpps 130.95 Mpps 139.88 Mpps
    PoE Standard IEEE802.3at, IEEE802.3af
    PoE Power Budget 55 W 92 W 230 W 230 W
    Surge Protection Up to 6 kV
    DSS-100E Series  | Unmanaged Surveillance Switch
    Technical Specifications / DSS-100E Series
    Physical
    Power Input 100 – 240 VAC
    Maximum Power
    Consumption
    PoE ON:
    • AC: 64.20 W
    • DC: 56.47 W
    PoE OFF:
    • AC: 1.57 W
    • DC: 1.39 W
    PoE ON:
    • AC: 113.4 W
    • DC: 93.5 W
    PoE OFF:
    • AC: 4.57 W
    • DC: 2.49 W
    PoE ON:
    • AC: 265.0 W
    • DC: 241.8 W
    PoE OFF:
    • AC: 16.89 W
    • DC: 11.8 W
    PoE ON:
    • AC: 269.28 W
    • DC: 239.57 W
    PoE OFF:
    • AC: 14.84 W
    • DC: 8.92 W
    Standby Power
    Consumption
    100V: 1.07 W
    240V: 1.15 W
    100V: 3.12 W
    240V: 3.50 W
    100V: 9.66 W
    240V: 9.63 W
    100V: 9.12 W
    240V: 9.18 W
    Acoustics 0 dB(A) 0 dB(A) 38.4 dB(A) 35.3 dB(A)
    Heat Dissipation Power On:
    • 0.31 BTU/h
    Maximum:
    • 7.73 BTU/h
    Power On:
    • 10.7 BTU/h
    Maximum:
    • 34.1 BTU/h
    Power On:
    • 33.4 BTU/h
    Maximum:
    • 885.3 BTU/h
    Power On:
    • 6.91 BTU/h
    Maximum:
    • 29.71BTU/h
    MTBF 96,9571 hours 52,308 hours 42,1391 hours • 402,625 hours
    Operating Temperature 0 – 40 °C (32 – 104 °F)
    Storage Temperature -40 – 70°C (-40 – 158 °F)
    Operating Humidity 10% – 95% RH
    Storage Humidity 5% – 95% RH
    DIP Switch
    5
    6
    7
    8
    1
    2
    3
    4
    5
    6
    7
    8
    1
    1
    2
    3
    Standard Mode
    Ports 1-16 support standard 100 m PoE at 10/100 Mbps per port.
    Ports 1-8 support port priority to optimize port cache.
    Supports Port Priority to optimize
    port cache
    Supports 100 m PoE Distance
    Transmits data at 10/100 Mbps per port
    Ports 1-8 support standard 100 m PoE at 10/100 Mbps per port.
    Ports 9-16 support PoE at distances up to 250 m with transmition speeds of
    10 Mbps per port.
    2 Isolation Mode
    Enhances security, restricting ports 1-16 to individually comminicate with
    ports 17 & 18.
    IP Camera
    (PoE)
    IP Camera
    (PoE)
    IP Camera
    (PoE)
    NVR
    3 Extend Mode
    Supports 250 m PoE Distance
    Transmit data at 10 Mbps per port
    Supports 100 m PoE Distance
    Transmit data at 10/100 Mbps per port
    Technical Specifications Order Information / DSS-100E Series
    HQ | No. 289, Xinhu 3rd Road, Neihu District, Taipei 11494
    Specifications are subject to change without notice. © 2020 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks
    or registered trademarks of D-Link. All other third-party marks mentioned herein may be trademarks of their respective owners.
    / DGS-1520 Series
    DSS-100E-6P 4-Port 10/100Mbps PoE Unmanaged Switch
    DSS-100E-9P 9-Port 10/100Mbps PoE Unmanaged Switch
    DSS-100E-18P 18-Port 10/100Mbps PoE Unmanaged Switch
    DSS-100E-26P 26-Port 10/100Mbps PoE Unmanaged Switch
    Optional SFP Transceivers
    DEM-310GT 1000BASE-LX, Single-mode, 10 km
    DEM-311GT 1000BASE-SX, multi-mode, 550 m
    DEM-312GT2 1000BASE-SX, multi-mode, 2 km
    DEM-314GT 1000BASE-LHX, single-mode, 50 km
    DEM-315GT 1000BASE-ZX, Single-mode, 80 km
