The D-Link DGS-1210-20
16 x 10/100/1000BASE-T ports
4 x Combo 10/100/1000BASE-T/SFP ports
capacity: 40 Gbps
rate: 29.8 Mpps
Layer 2
Smart-Managed
8,400 EGP
This switch is suitable for small to medium-sized networks, providing robust performance and management features for efficient network operation.

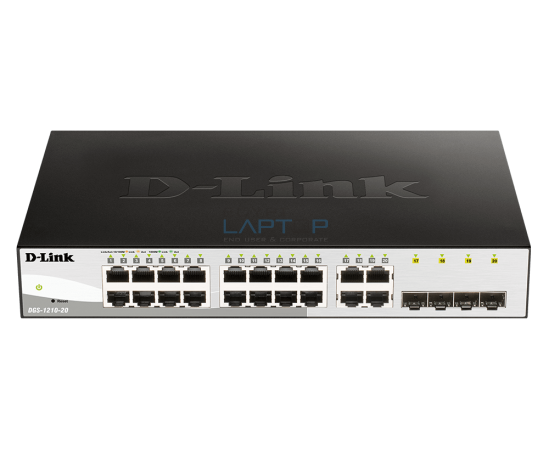

The D-Link DGS-1210-20 is a 20-port Gigabit Smart Managed Switch designed for efficient network management. It features 16 x 10/100/1000BASE-T ports and 4 combo SFP ports, with a switching capacity of 40 Gbps and a forwarding rate of 29.8 Mpps.
Ports:
16 x 10/100/1000BASE-T ports
4 x Combo 10/100/1000BASE-T/SFP ports
Performance:
Switching capacity: 40 Gbps
Forwarding rate: 29.8 Mpps
MAC address table: 16,000 entries
Supports Jumbo Frames up to 9,216 bytes
Physical Specifications:
Dimensions: 280 mm x 180 mm x 44 mm
Weight: Approximately 1.5 kg
Operating temperature: 0 to 50 °C
Storage temperature: -40 to 70 °C
Operating humidity: 0% to 95% RH
Power Input:
100 to 240 V AC
Power consumption: 20 W (max)
Additional Features:
Layer 2 switching capabilities
Advanced security features including ACLs and port security
VLAN support and Link Aggregation
Web-based management interface for easy configuration
Energy-efficient design compliant with IEEE 802.3az
High-Speed Wireless: Offers wireless speeds of up to 300 Mbps, ideal for streaming, browsing, and online gaming.
Multiple Operating Modes: Supports Access Point, Repeater, and Client modes, allowing for versatile network configurations to meet your needs.
Easy Setup: User-friendly web interface and WPS button for quick and hassle-free installation.
Enhanced Coverage: Equipped with external antennas to improve wireless signal strength and coverage throughout your space.
Simultaneous operation in 5GHz band and 2.4GHz band, 802.11a/b/g/n/ac compatible
Total wireless connection rate up to 750Mbps
10/100BASE-TX WAN port
4 10/100BASE-TX LAN ports
Two external non-detachable antennas (5dBi gain for 2.4GHz and 5GHz)
One internal antenna (3dBi gain for 2.4GHz)
IPv6 ready
Support for wireless encryption using WPA™ or WPA2™
