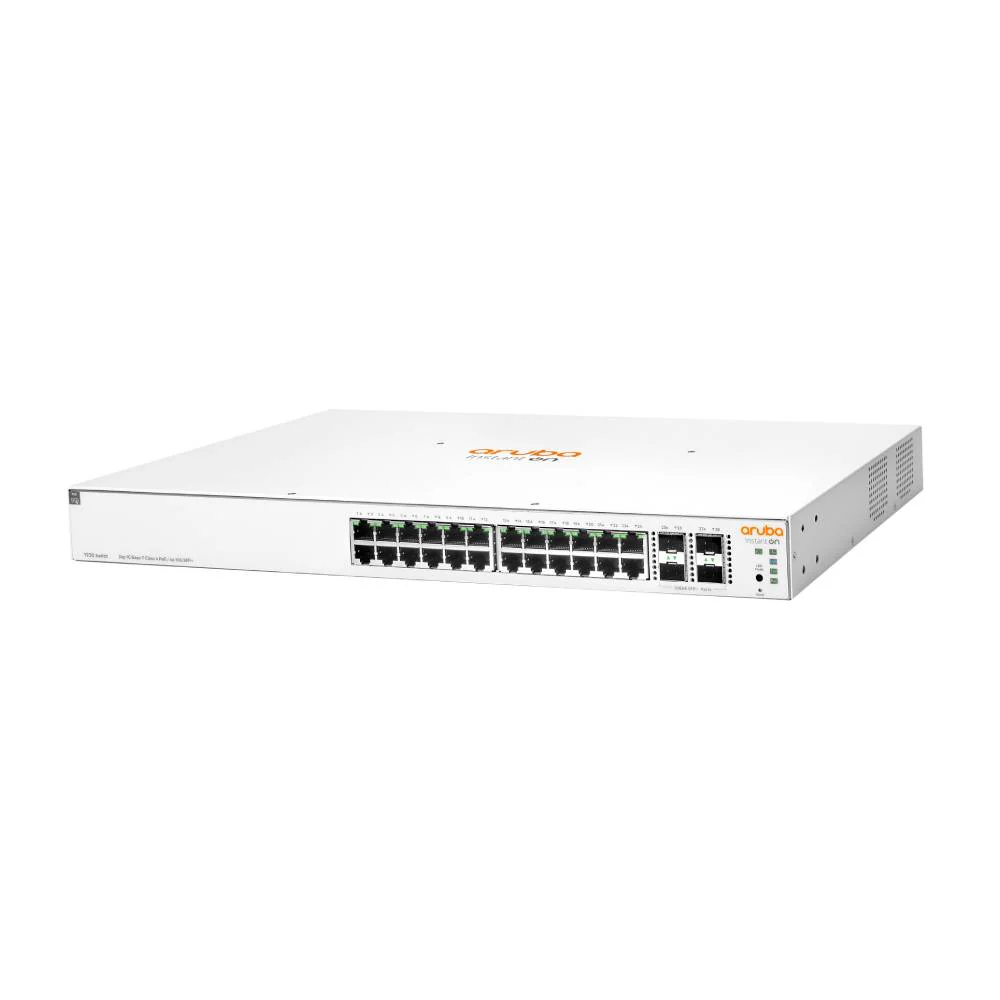

ARUBA JL683B HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 195W 1930

Brand	ARUBA
Switch Placement	DeskTop
Switch Ports	24p Gigabit CL4 PoE 4p SFP+
Switch Power	Non-PoE and Class 4 PoE
Switch Type	Smart Managed

Key Specifications:

Switching Capacity: 128 Gbps

PoE Capability: 195W Class 4 PoE

Input Voltage: 100 – 240 VAC

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Dimensions: 1.73 x 17.32 x 10.24 inches

Weight: Approximately 6.61 lbs

This switch is ideal for bandwidth-intensive applications and offers cloud management features for easy deployment and monitoring.

Key Features:

Port Configuration:

24 x 10/100/1000 Mbps Gigabit Ethernet ports (PoE+)

4 x 1G/10G SFP/SFP+ ports for fiber connectivity

Management:

Smart-managed with cloud-based management via mobile app or web portal

Easy setup and monitoring from anywhere

Security Features:

IEEE 802.1X for network access control

VLAN support for network segmentation

Automatic denial-of-service (DoS) protection

Power over Ethernet (PoE):

Supports up to 30W per port for PoE devices like access points and IP cameras

Design:

Rack-mountable, with a 1U form factor

Fanless design for quiet operation

Warranty:

Industry-leading limited lifetime warranty and support

Technical Specifications:

Manufacturer: Hewlett Packard Enterprise

Model Number: JL683B#ABA

Power Consumption: 195W total PoE budget

Switching Capacity: 128 Gbps

Throughput: 95.2 Mpps

Operating Humidity: 10% to 90% (non-condensing)

Physical Characteristics:

Dimensions:

Height: 1.73 inches

Width: 17.32 inches

Depth: 10.24 inches

Weight: Approximately 6.61 lbs

Additional Information:

What’s in the Box:

Instant On 1930 24G Switch

2-post rack kit

Mounting brackets
