The TP-LINK EAP115-Wall is a 300Mbps Wireless N Wall-Plate Access Point designed for indoor use, ideal for guest rooms and meeting spaces. It supports IEEE 802.11b/g/n standards on the 2.4GHz band, offers dual 10/100Mbps Ethernet ports (one uplink and one downlink), and supports Power over Ethernet (PoE 802.3af). Security features include WPA/WPA2-enterprise encryption. The device is wall-mountable, compact (about 8.7 x 8.7 x 3 cm), and consumes around 2.8W of power. It provides reliable wireless speeds up to 300Mbps and integrates seamlessly with existing wired networks.
Networking, Routers and Access Point, Wireless Range Extender

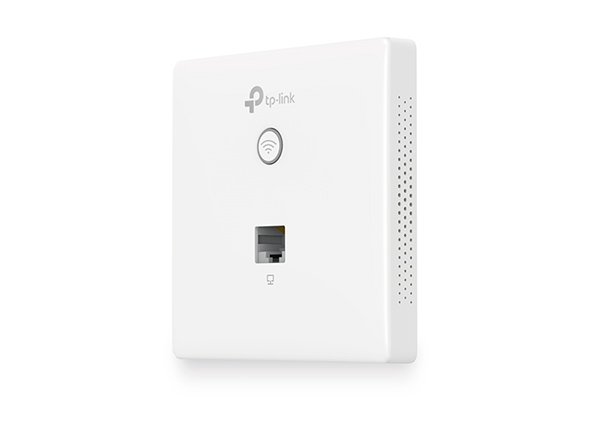

TP-Link EAP115-Wall Wireless N Wall-Plate Access Point, 300Mbps
The TP-LINK EAP115-Wall is a 300Mbps Wireless N Wall-Plate Access Point designed for indoor use, ideal for guest rooms and meeting spaces. It supports IEEE 802.11b/g/n standards on the 2.4GHz band, offers dual 10/100Mbps Ethernet ports (one uplink and one downlink), and supports Power over Ethernet (PoE 802.3af). Security features include WPA/WPA2-enterprise encryption. The device is wall-mountable, compact (about 8.7 x 8.7 x 3 cm), and consumes around 2.8W of power. It provides reliable wireless speeds up to 300Mbps and integrates seamlessly with existing wired networks.
Model : EAP115-Wall
Interfaces: 2 x 10/100Mbps Ethernet RJ-45 ports (one for uplink, one for downlink/pass-through)
Standards: IEEE 802.11b/g/n (2.4GHz only)
Frequency Band: 2.4GHz
Antenna: Internal 2 x 1.8dBi omnidirectional antennas
Mounting: Fits standard wall-plate mounting
2,160 EGP
Interfaces: 2 x 10/100Mbps Ethernet RJ-45 ports (one for uplink, one for downlink/pass-through)
Buttons: LED/Wi-Fi button and Reset button
Power Supply: PoE (IEEE 802.3af compliant)
Power Consumption: Maximum 2.8W
Dimensions: 3.4 x 3.4 x 1.2 inches (86.8 x 86.8 x 30.2 mm)
Antenna: Internal 2 x 1.8dBi omnidirectional antennas
Mounting: Fits standard wall-plate mounting
Watchdog Function: Yes, for automatic recovery
Physical Security: Kensington lock slot not specified; compact design for flush installation
Wireless Features
Standards: IEEE 802.11b/g/n (2.4GHz only)
Frequency Band: 2.4GHz
Data Rates:
802.11n: Up to 300Mbps (dynamic)
802.11g: Up to 54Mbps (dynamic)
802.11b: Up to 11Mbps (dynamic)
Transmit Power: <15dBm (CE certified for 2.4GHz)
Wireless Functions:
Up to 8 SSIDs per radio
Enable/disable wireless radio
Automatic channel selection
Adjustable transmit power control
QoS (WMM) for prioritizing voice, video, and data
Load balancing for high-density user support
Per-SSID rate limiting
Reboot and wireless scheduling
Statistics tracking by SSID, AP, or client
Compatibility: Works with 802.11b/g/n devices
Security Features
Authentication: Captive portal for guest Wi-Fi
Access Control: Restrict/allow clients to specific network segments
Encryption: 64/128/152-bit WEP, WPA/WPA2-Personal/Enterprise, 802.1X with RADIUS
Additional Protections:
MAC address filtering
Wireless client isolation
SSID to VLAN mapping
Rogue AP detection
WPA/WPA2-Enterprise and PSK modes
Management and Monitoring
Software: Free Omada SDN Controller for managing multiple EAPs centrally
Access Methods:
Web-based (HTTP/HTTPS)
Telnet
SNMP (v1/v2c)
Layer 3 management support
Management VLAN
Multi-site management
Alerts and Logs: Email notifications, local/remote syslog
Controls: LED on/off, MAC access control for management
Operating Modes: Managed AP (via controller) or standalone AP
Environmental and Certifications
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Certifications: CE, RoHS
