The TP-Link Archer A6 is an AC1200 dual-band wireless MU-MIMO gigabit router designed for reliable home networking, supporting speeds up to 1200 Mbps combined (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz).
Networking, Routers and Access Point

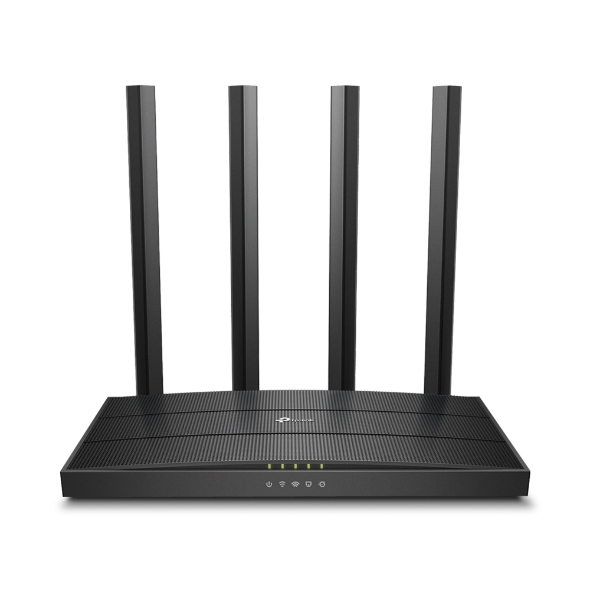

TP-Link Archer A6 MU-MIMO Gigabit Wireless Router, AC1200
The TP-Link Archer A6 is an AC1200 dual-band wireless MU-MIMO gigabit router designed for reliable home networking, supporting speeds up to 1200 Mbps combined (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz).
Model : Archer A6
AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band
MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
Ports: 1 × 10/100/1000 Mbps Gigabit WAN port, 4 × 10/100/1000 Mbps Gigabit LAN ports
Buttons: Reset button, Power On/Off button, WPS/Wi-Fi On/Off button
Antennas: 4 fixed external antennas + 1 internal antenna for optimal coverage
Standards: IEEE 802.11ac/n/a on 5 GHz, IEEE 802.11b/g/n on 2.4 GHz
Frequency Bands: Simultaneous 2.4 GHz and 5 GHz dual-band operation
2,862 EGP
Ports: 1 × 10/100/1000 Mbps Gigabit WAN port, 4 × 10/100/1000 Mbps Gigabit LAN ports
Buttons: Reset button, Power On/Off button, WPS/Wi-Fi On/Off button
Antennas: 4 fixed external antennas + 1 internal antenna for optimal coverage throughout the home
Power Supply: External 12V/1A adapter
Dimensions: 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)
Processor: 750 MHz single-core CPU for smooth operation
Wireless Specifications
Standards: IEEE 802.11ac/n/a on 5 GHz, IEEE 802.11b/g/n on 2.4 GHz
Frequency Bands: Simultaneous 2.4 GHz and 5 GHz dual-band operation
Signal Rates: Up to 867 Mbps on 5 GHz, up to 300 Mbps on 2.4 GHz (total 1200 Mbps)
Transmit Power: FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz)
Reception Sensitivity:
5 GHz: 11a 6 Mbps: -93 dBm; 11a 54 Mbps: -78 dBm; 11ac HT20 MCS8: -69 dBm; 11ac HT40 MCS9: -65 dBm; 11ac HT80 MCS9: -62 dBm
2.4 GHz: 11g 54 Mbps: -78 dBm; 11n HT20 MCS7: -74 dBm; 11n HT40 MCS7: -71 dBm
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Schedule
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
Advanced Wireless Features: MU-MIMO (serves up to 2 devices simultaneously for 2x efficiency), Beamforming (wider coverage and stronger signals)
Software and Networking Features
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), BigPond
DHCP: Server, Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
VPN Server: PPTP VPN, OpenVPN
Access Control: Parental Controls, Local Management, Host List, White List, Black List
Firewall Security: DoS Protection, SPI Firewall, IP & MAC Address Binding
Protocols: IPv4, IPv6
Management: Access Control, Local Management, Remote Management, TP-Link Tether App for easy setup and control
Guest Network: Separate 2.4 GHz and 5 GHz guest networks
Other Features: Access Point Mode (to share wired network wirelessly), Gigabit connectivity (up to 10x faster than standard Ethernet)
Environmental Specifications
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Certifications and Compliance
Certifications: FCC, RoHS
Standards Compliance: IEEE 802.11ac/n/a/b/g, IEEE 802.3/3u/3ab
