The Hikvision DS-1LN6-UU is a 305m CAT6 UTP network cable designed for reliable data transmission. It features solid copper conductors with a core diameter of 0.565 mm, supports bandwidths up to 250 MHz, and can handle data rates of up to 10 Gbps, ensuring excellent performance for networking applications.
Networking, UTP Cable

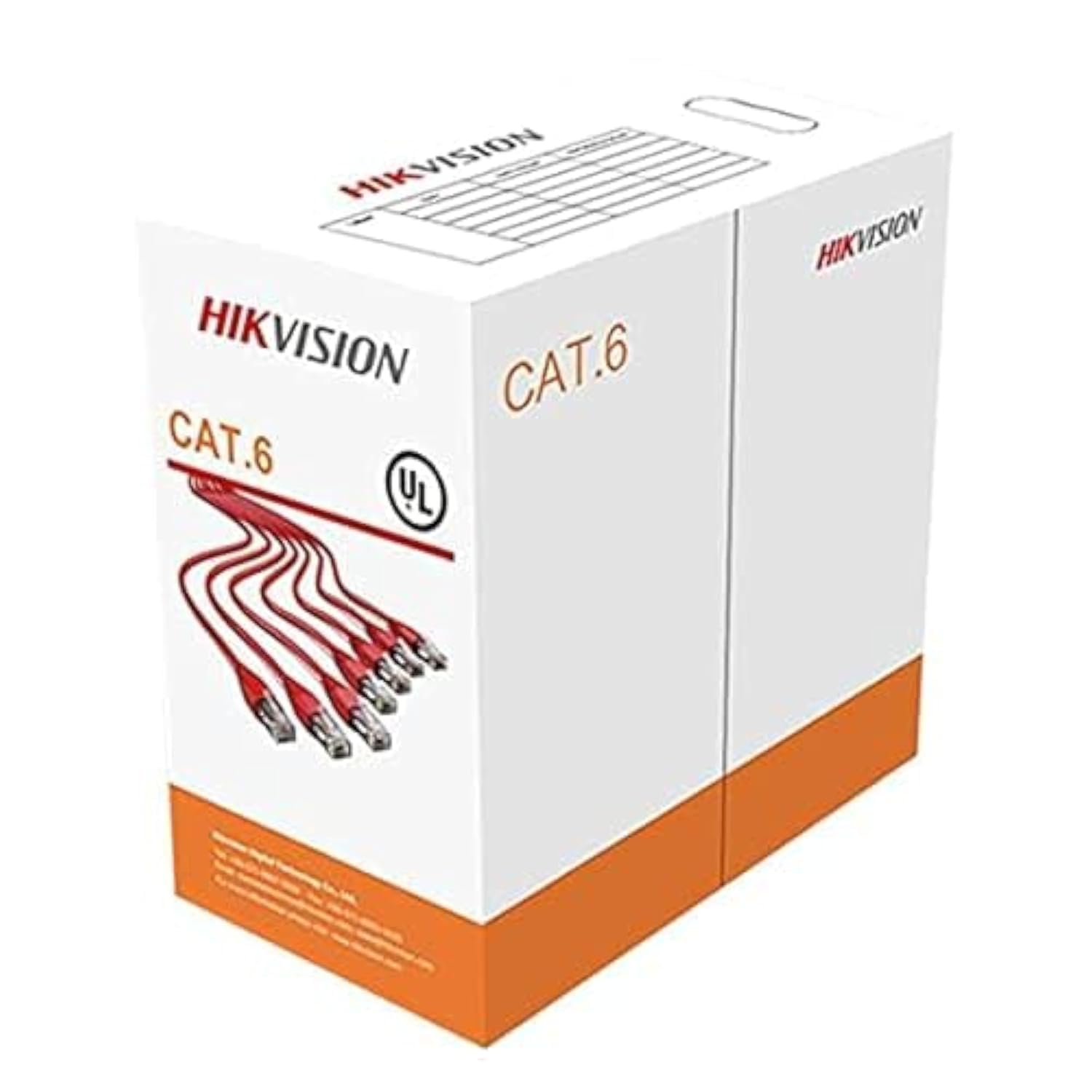

Hikvision DS-1LN6-UU Network Cable 305m Cat6 UTP
Availability:
Out of stock
The Hikvision DS-1LN6-UU is a 305m CAT6 UTP network cable designed for reliable data transmission. It features solid copper conductors with a core diameter of 0.565 mm, supports bandwidths up to 250 MHz, and can handle data rates of up to 10 Gbps, ensuring excellent performance for networking applications.
Model : DS-1LN6-UU
Cable Type: U/UTP CAT6
Length: 305 meters
Conductor Material: Solid Bare Copper
Conductor Diameter: 0.565 mm
Bandwidth: Up to 250 MHz
Data Rate: Supports up to 10 Gbps
6,719 EGP
Out of stock
Cable Type: U/UTP CAT6
Length: 305 meters
Conductor Material: Solid Bare Copper
Conductor Diameter: 0.565 mm
Bandwidth: Up to 250 MHz
Data Rate: Supports up to 10 Gbps
Jacket Color: Typically black
Electrical Characteristics
Impedance: 100 ± 15 Ω (1.0-250.0 MHz)
Delay Skew: ≤ 45 ns/100m
DC Resistance: Max 9.38 Ω/100m
Performance Features
Transmission Performance: Excellent performance verified by Fluke testing.
Compliance: Meets ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801 standards.
Temperature Rating: Rated for operation at 75°C (167°F).
