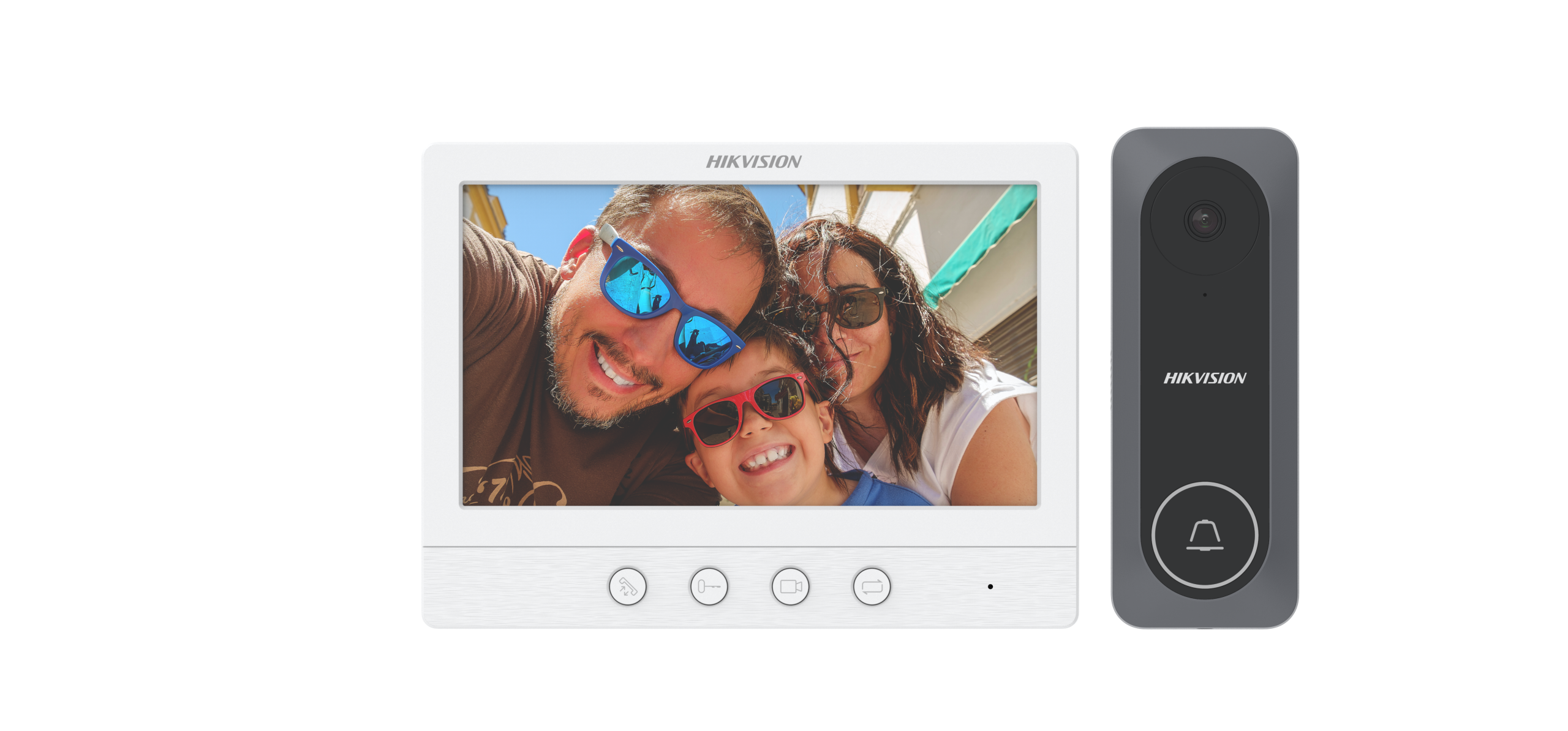

Hikvision Intercam HD Video Intercom Kit – DS-KIS212

Video Quality: HD TVI

Resolution: 1280 x 720 @ 60 fps

Installation Type: Plug-and-play

System Capacity: Supports up to 2 door stations and 3 indoor stations

Communication: One-press to call and unlock the door

Door Station Specifications:

Camera:

Field of View: Horizontal 130°, Vertical 70°

IR Light: Up to 3 meters for night vision

WDR (Wide Dynamic Range): 120 dB for improved image quality in varying light conditions

Audio:

Microphone: Built-in omnidirectional microphone

Speaker: Built-in loudspeaker with echo cancellation

Power Supply: 12 VDC ± 25%, max. 9.6 W (supports PoE: IEEE 802.3af, Class 3)

Indoor Station Specifications:

Display:

Screen Size: 7-inch TFT

Resolution: 1024 x 600

Audio:

Microphone: Built-in omnidirectional microphone

Speaker: Built-in loudspeaker

User Interface: Touch-sensitive buttons for easy navigation

Power Supply: 12 VDC ± 25%

Network and Connectivity:

Network Protocols: TCP/IP, RTSP

Connectivity: Ethernet port (10/100 Mbps)

Power over Ethernet (PoE): Supported

Operating Conditions:

Operating Temperature: -10°C to 55°C (14°F to 131°F)

Operating Humidity: 10% to 90% (non-condensing)

Physical Specifications:

Dimensions (Door Station): 120 mm × 120 mm × 40 mm (approx.)

Dimensions (Indoor Station): 240 mm × 150 mm × 25 mm (approx.)

Weight (Door Station): Approximately 0.5 kg (1.1 lbs)

Weight (Indoor Station): Approximately 1.2 kg (2.65 lbs)
